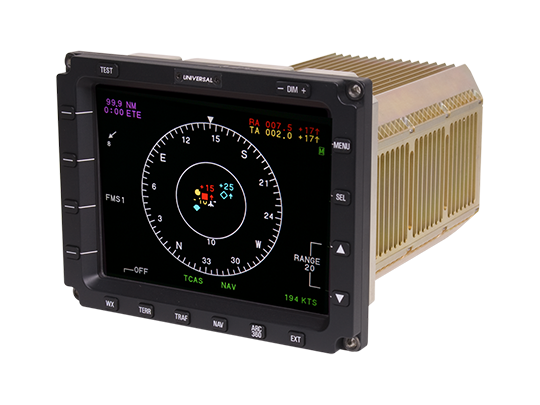

MFD-640 | Multi-Function Display
Versatile and Powerful Multi-Function Display
Connect to a multitude of flight information in a single display with Universal MFD-640. Visualize weather radar, FMS (flight management system) data, terrain and traffic awareness, and more on a reliable and efficient LED backlit screen.
The MFD-640 interfaces with a variety of Weather Radar, Terrain Awareness Warning System (TAWS), and traffic avoidance systems as well as onboard video, Vision-1™, Flight Management Systems (FMS), and lightning detection systems. Its size and extensive interface capabilities makes it a versatile instrument for installation in a host of aircraft platforms, and adds valuable functionality for the operator.
The MFD-640 features superior sunlight readability, high-resolution and contrast, and super-wide viewing angles. View FMS data including flight plan with surrounding navaids, airports, and more. Monitor VOR/DME bearing /distance on the 360-degree or arc compass rose. Show surrounding air traffic and uplinked weather maps or access an onboard video camera.
Versatile and Powerful
Retrofit Solution
Superior sunlight readability
High-resolution and high-contrast LED backlight system
Super-wide viewing angles
Access an onboard video camera {image}
View Flight Management system data including flight plan with surrounding navaids, airports
Supported Interfaces
Flight Plan Data

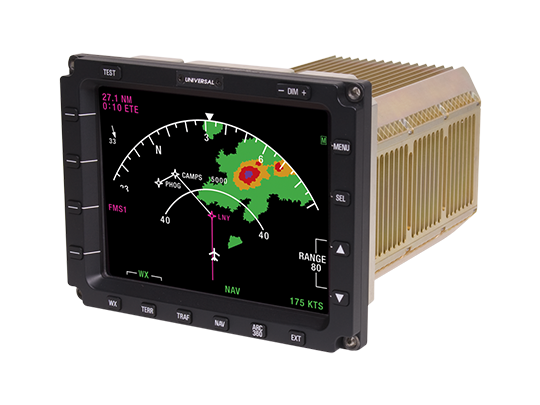

Weather Radar
Synthetic Vision System
Enhanced Ground Proximity Warning System (EGPWS)
Traffic Collision and Avoidance System (TCAS)
Lightning Detection Systems
Video Interface Unit for interface with multiple video sources
Radar Control Panel for interface with certain radar systems
Hardware
Bezel: 5.17 in. H x 6.67 in. W
Image Size: 3.86 in. H x 5.14 in. W (6.4 in. diagonal)
Case Size: 4.975 in. H x 5.975 in. W x 8.27 in. D, excluding connector
High-resolution terrain database for crisp, clear images in real-time.
Flight Management System
View FMS data including flight plan with surrounding navaids, airports, and more. Monitor VOR/DME bearing /distance on the 360-degree or arc compass rose. Show surrounding air traffic and uplinked
weather maps or access an onboard video camera.
Installation of Universal Avionics Systems Corporation Terrain Awareness Warning System (TAWS), Software control number (SCN) 10.X, and Universal Avionics Systems Multi-Function Display (MFD) in accordance with Duncan Aviation Master Drawing List DA0008-0
STC Holder
DUNCAN AVIATION, INC - LINCOLN
4001 N PARK RD
UNITED STATES
Installation of the Universal Avionics MFD-640 system in the Bombardier DHC-8-100, 200, 300 Series Aircraft
STC Holder
AVMAX AVIATION SERVICES INC.
275 PALMER ROAD N.E.
CANADA
Responsible Office
N/A
Aircraft
DeHavilland DHC-8-300 Q300
DeHavilland DHC-8-100 Q100
DeHavilland DHC-8-200 Q200
Components
MFD-640
STC Number
Status
Date
ST01478LA-D
Surrendered
6/24/2009
Description
Installation of Universal Avionics Systems Corporation Terrain Awareness and Warning System (TAWS) with dual Universal Avionics Systems Corporation MFD-640 multi-functional displays
STC Holder
HOLLINGSEAD INTERNATIONAL
2226 GOODYEAR AVE
UNITED STATES
Responsible Office
Los Angeles Aircraft Certification Office (ANM-100L), Tel: (562) 627-5200
Aircraft
McDonnell Douglas DC-10
Components
MFD-640
TAWS
STC Number
Status
Date
10016279
Issued
11/23/2007
Description
Installation of Universal Avionics EFI-890R Flat Panel Displays and MFD-640.
STC Holder
UASC - CERTIFICATION GROUP
3260 EAST UNIVERSAL WAY
UNITED STATES
Responsible Office
N/A
Aircraft
Challenger CL601-3A 5001 - 5134
Challenger CL601-1A 3001 - 3066
Challenger CL601-3R 5135 - 5299
Challenger CL600 1001 - 1085
Components
MFD-640
EFI-890R
STC Number
Status
Date
ST10379SC
Issued
2/3/2005
Description
Installation of a Universal Avionics Systems Multi-Function Display.
STC Holder
AIRCRAFT SYSTEMS & MFG, INC.
DBA JANA ENGINEERING
1717 UNIVERSAL CITY BLVD.
UNITED STATES
Responsible Office
Ft. Worth Special Certification Office (ASW-190), Tel: (817) 222-5190
Aircraft
Boeing 737-300
Boeing 737-100
Boeing 737-200
Components
MFD-640
STC Number
Status
Date
10015342
Issued
12/14/2004
Description
Installation of MFD-640
STC Holder
AIRCRAFT SYSTEMS & MFG, INC.
DBA JANA ENGINEERING
1717 UNIVERSAL CITY BLVD.
UNITED STATES
Responsible Office
N/A
Aircraft
McDonnell Douglas MD-81
McDonnell Douglas MD-82
McDonnell Douglas MD-83
McDonnell Douglas MD-87
Components
MFD-640
STC Number
Status
Date
10015474
Issued
8/19/2005
Description
Replacement of existing HONEYWELL MK II GPWS and COLLINS MFD-85 with a UNIVERSAL Terrain Awareness and Warning system (TAWS) and a UNIVERSAL MFD-640
STC Holder
TAG MAINTENANCE SERVICES
AVIONICS DIVISION
21 CH DES PAPILLONS
GENEVA AIRPORT
SWITZERLAND
Responsible Office
N/A
Aircraft
Falcon 50 0001 - 0252 ex 0251
Components
MFD-640
TAWS
STC Number
Status
Date
ST01103WI
Issued
7/31/2002
Description
Installation of a Universal Avionics (TAWS) Terrain Awareness and Avoidance System.
STC Holder
BLACKHAWK AEROSPACE TECHNOLOGIES, INC.
11200 AIRPORT ROAD
UNITED STATES
Installation of Universal Avionics Systems Corporation Terrain Awareness Warning System (TAWS) with optional MFD-640 Multi-Function Display. For 560 model, limited to serial numbers 560-0001 through 560-0259.
STC Holder
ELLIOTT AVIATION– MOLINE
6601 74TH AVENUE
BLDG A
UNITED STATES
Responsible Office
Chicago Aircraft Certification Office (ACE-115C), Tel: (847) 294-7358
Aircraft
Citation SII S550 0001 - 0160
Citation V 560 0001 - 0259
Citation Bravo 550 0801 - 1138
Citation II 550 0001 - 0734
Components
MFD-640
TAWS
STC Number
Status
Date
ST02786AT
Reissued
7/27/2017
Description
Installation of Universal Avionics System Corporation (UASC) Terrain Awareness and Warning System (TAWS) and Multifunction Display (MFD) System used as a Weather Radar (WXR), TAWS and Traffic Alert and Collision Avoidance (TCAS) Traffic Advisory (TA) disp
STC Holder
AIRCRAFT RADIO & AVIONICS, LLC.
5415 NW 36TH ST
UNITED STATES
Responsible Office
Atlanta Aircraft Certification Office (ACE-115A), Tel: (404) 474-5500
Aircraft
Boeing 727-200
Boeing 727-100
Components
MFD-640
TAWS
STC Number
Status
Date
ST01426CH-D
Amended
9/26/2001
Description
Installation of Universal Avionics Multi-Function Display (MFD).
STC Holder
STANDARDAERO - SPRINGFIELD
CAPITAL AIRPORT
1200 NORTH AIRPORT DRIVE
UNITED STATES
Responsible Office
N/A
Aircraft
Falcon 50 0001 - 0252 ex 0251
Components
MFD-640
STC Number
Status
Date
SR01610NY-D
Reissued
10/1/2011
Description
Installation of Universal Avionics Systems Corporation Multi-Function Display (MFD-640) System
STC Holder
SIKORSKY AIRCRAFT CORPORATION - COATESVILLE
110 E STEWART HUSTON DR
UNITED STATES
Responsible Office
New York Aircraft Certification Office (ANE-170), Tel: (516) 228-7300
Aircraft
Sikorsky S-76A+
Sikorsky S-76C+
Sikorsky S-76B
Sikorsky S-76C
Components
MFD-640
STC Number
Status
Date
ST01137WI-D
Reissued
9/9/2005
Description
Installation of interface between Honeywell MK VII Enhanced Ground Proximity Warning System and the Universal 640 Multi-Function Display.
STC Holder
CESSNA AIRCRAFT COMPANY
3 CESSNA BOULEVARD
United States
Installation of Universal Avionics Terrain Awareness and Warning System (TAWS) with Video Display on an optional Universal Avionics Multi-Function Display (MFD).
STC Holder
STANDARDAERO - SPRINGFIELD
CAPITAL AIRPORT
1200 NORTH AIRPORT DRIVE
UNITED STATES
Responsible Office
Chicago Aircraft Certification Office (ACE-115C), Tel: (847) 294-7358
Aircraft
Falcon 20G
Falcon 200
Falcon 20F
Falcon 20D
Components
MFD-640
TAWS
STC Number
Status
Date
ST01400CH
Issued
3/28/2001
Description
Installation of Universal Avionics Systems Model 640 flat panel electronic engine and systems instrument display system.
STC Holder
STANDARDAERO - SPRINGFIELD
CAPITAL AIRPORT
1200 NORTH AIRPORT DRIVE
UNITED STATES
Responsible Office
Chicago Aircraft Certification Office (ACE-115C), Tel: (847) 294-7358
Aircraft
Falcon 20D
Falcon 20F
Falcon 20G
Components
MFD-640
STC Number
Status
Date
ST01404CH
Amended
9/19/2002
Description
Installation of Universal Avionics MFD.
STC Holder
ELECTRONIC CABLE SPECIALISTS
5300 W. FRANKLIN DRIVE
UNITED STATES
Responsible Office
Chicago Aircraft Certification Office (ACE-115C), Tel: (847) 294-7358
Aircraft
McDonnell Douglas DC-9
Components
MFD-640
STC Number
Status
Date
ST03127AT
Issued
6/21/2005
Description
Installation of Universal Avionics Class A Terrain Awareness Warning System (TAWS) with MFD-640 Multi-Function Display, and Radar control Panel (replaces existing weather radar display)
STC Holder
PRIVATESKY AVIATION SVCS, INC.
SW FLORIDA INT'L AIRPORT
ONE PRIVATESKY WAY
UNITED STATES
Responsible Office
Atlanta Aircraft Certification Office (ACE-115A), Tel: (404) 474-5500
Aircraft
Gulfstream G-IIB
Gulfstream G-II
Components
MFD-640
TAWS-A
STC Number
Status
Date
ST10229SC
Issued
3/16/2004
Description
Installation of a Universal MDF-640 display and Class A Terrain Awareness Warning System (TAWS).
STC Holder
CESSNA AIRCRAFT COMPANY
3 CESSNA BOULEVARD
United States
Responsible Office
Ft. Worth Special Certification Office (ASW-190), Tel: (817) 222-5190
Aircraft
Citation SII S550 0001 - 0160
Components
MFD-640
STC Number
Status
Date
ST10378SC
Issued
2/2/2005
Description
Installation of a Universal Avionics Systems Multi-Function Display.
STC Holder
AIRCRAFT SYSTEMS & MFG, INC.
DBA JANA ENGINEERING
1717 UNIVERSAL CITY BLVD.
UNITED STATES
Responsible Office
Ft. Worth Special Certification Office (ASW-190), Tel: (817) 222-5190
Aircraft
Boeing 727-100
Boeing 727-200
Components
MFD-640
STC Number
Status
Date
ST01498LA-D
Issued
10/24/2003
Description
Installation of a Universal Avionics multi-functional display (MFD-640) system.
STC Holder
N/A
Responsible Office
N/A
Aircraft
Gulfstream G-IIB
Gulfstream G-II
Components
MFD-640
STC Number
Status
Date
ST01683CH
Amended
5/6/2009
Description
Installation of a Universal Avionics' MFD.
STC Holder
ELECTRONIC CABLE SPECIALISTS
5300 W. FRANKLIN DRIVE
UNITED STATES
Responsible Office
Chicago Aircraft Certification Office (ACE-115C), Tel: (847) 294-7358
Aircraft
Boeing 747
Boeing 747SP
Components
MFD-640
STC Number
Status
Date
ST01514CH-D
Reissued
10/3/2008
Description
Installation of Universal Avionics Systems Corporation Terrain Awareness Warning System (TAWS), Software Control (SCN) 10.X and Universal Multi-Function Display (MFD) in accordance with Duncan Aviation Master Drawing List DA0202-04R revision A, dated 5/30
STC Holder
DUNCAN AVIATION, INC - LINCOLN
4001 N PARK RD
UNITED STATES
Installation of Universal Avionics Systems Corporation (USAC) (4) EFI-890R Flat Panel Displays and a Universal MFD-640 Multifunction Display
STC Holder
UASC - CERTIFICATION GROUP
3260 EAST UNIVERSAL WAY
UNITED STATES
Responsible Office
Chicago Aircraft Certification Office (ACE-115C), Tel: (847) 294-7358
Aircraft
Challenger CL601-3A 5001 - 5134
Challenger CL601-1A 3001 - 3066
Challenger CL604 5301 - 5665
Challenger CL600 1001 - 1085
Components
MFD-640
EFI-890R
STC Number
Status
Date
ST01010LA-D
Reissued
6/23/2009
Description
Installation of Rockwell Collins WXR-700 Weather Radar System and Universal Avionics MFD-640 multi-function display.
STC Holder
BARNHART AVIATION SERVICE
541 HALE RD
UNITED STATES
Responsible Office
Chicago Aircraft Certification Office (ACE-115C), Tel: (847) 294-7358
Aircraft
Boeing 727-200
Boeing 727-100
Components
MFD-640
STC Number
Status
Date
ST01698CH
Issued
9/26/2002
Description
Installation of a Universal Avionics Terrain Awareness Warning System displayed on a Universal Avionics MFD-640. Approved for installation on Falcon 50, serial number 057 ONLY.
STC Holder
N/A
Responsible Office
Chicago Aircraft Certification Office (ACE-115C), Tel: (847) 294-7358
Aircraft
Falcon 50 0001 - 0252 ex 0251
Components
MFD-640
TAWS
STC Number
Status
Date
ST02996AT
Issued
12/3/2004
Description
Installation of a Universal Avionics TAWS System and MFD-640 Display
STC Holder
AVIONICS GROUP
13030 SW 133RD COURT
UNITED STATES
Responsible Office
Atlanta Aircraft Certification Office (ACE-115A), Tel: (404) 474-5500
Aircraft
Boeing 737-100
Boeing 737-200
Boeing 737-300
Boeing 737-400
Components
MFD-640
TAWS
STC Number
Status
Date
ST01507CH-D
Reissued
9/16/2008
Description
Installation of Universal Avionics Systems Corporation terrain awareness warning system (TAWS), software control number (SCN) 10.X and Universal Avionics Systems Multi-Function Display (MFD) in accordance with Duncan Aviation, Inc., Master Drawing List, D
STC Holder
DUNCAN AVIATION, INC - LINCOLN
4001 N PARK RD
UNITED STATES
Installation of Universal Avionics system Corporation Multi-Function Display in accordance with Electronic Cable Specialists MasterData List ECS-2000416 rev. E dated 17.3.2003
STC Holder
ELECTRONIC CABLE SPECIALISTS
5300 W. FRANKLIN DRIVE
UNITED STATES
Responsible Office
N/A
Aircraft
McDonnell Douglas DC-9
Components
MFD-640
STC Number
Status
Date
ST01793CH-D
Issued
3/14/2003
Description
Installation of a Universal Avionics Multi-Function Display MFD-640.
STC Holder
STANDARDAERO - SPRINGFIELD
CAPITAL AIRPORT
1200 NORTH AIRPORT DRIVE
UNITED STATES
Responsible Office
Chicago Aircraft Certification Office (ACE-115C), Tel: (847) 294-7358
Aircraft
Gulfstream G-IIB
Gulfstream G-II
Components
MFD-640
STC Number
Status
Date
SA01442LA
Issued
3/21/2003
Description
Installation of the Universal Avionics MFD-640.
STC Holder
UASC - CERTIFICATION GROUP
3260 EAST UNIVERSAL WAY
UNITED STATES
Responsible Office
N/A
Aircraft
King Air B300 FL-782 - FL-999
Components
MFD-640
STC Number
Status
Date
ST01058WI-D
Issued
4/5/2002
Description
Incorporation of a Universal Avionics MFD-640 Display System on Learjet models 31/35/35A/36/36A.
STC Holder
LEARJET INC. - CHICAGO
251- A WILLE ROAD
UNITED STATES
Installation of a Free Flight Model 2101 I/O Approach Plus Global Positioning System (GPS), Universal Model MFD 640 Multi-function Display (MFD), and Provisions for an Aviation Communication & Surveillance Systems (ACSS) Terrain & Traffic Collision Avoida
STC Holder
EMTEQ, INC.
5349 SOUTH EMMER DRIVE
UNITED STATES
Responsible Office
Atlanta Aircraft Certification Office (ACE-115A), Tel: (404) 474-5500
Aircraft
McDonnell Douglas MD-87
McDonnell Douglas MD-82
McDonnell Douglas MD-80
McDonnell Douglas MD-81
Components
MFD-640
STC Number
Status
Date
ST02712AT
Issued
9/12/2003
Description
the installation of Universal Avionics' Terrain Awareness and Warning System (a class A TAWS) with a Universal MFD-650 Multi-Function Display into a Cessna Model 650 Citation III per Cessna Aircraft Company Master Drawing List CF90073, Rev. B, dated 08-27
STC Holder
CESSNA AIRCRAFT COMPANY
3 CESSNA BOULEVARD
United States
Responsible Office
Atlanta Aircraft Certification Office (ACE-115A), Tel: (404) 474-5500
Aircraft
Citation VI 650 0200-0202; 0207-0241
Citation III 650 0001-0199; 0203-0206
Citation VII 650 7001 - 7119
Components
MFD-640
TAWS-A
The installation was a big step forward in modernization of the cockpit. The combination of WSI, enhanced vision, and the vertical guidance of WAAS have made flying much safer for us.
Main: +1 520 295 2300
AOG 24-Hour Hotline: +1 520 295 2399
Press Releases
UA Blog
Brochures & Whitepapers
Events
Technical Publications
UA Academy
UniNet
Manage Subscription
